상세 정보 |
|||
| 이름: | 질소 공기 분리 장치 | 청정: | 90%~ 99.9999% |
|---|---|---|---|
| 이슬점: | -45 more 이상 | 재료: | 스테인레스 스틸 또는 탄소강 |
| 용량: | 5nm3/hr ~ 5500nm3/hr | 압력: | 조절할 수 있는 |
| 강조하다: | explosion proof nitrogen generator,PSA nitrogen air separation unit,automatic shutdown nitrogen generator |
||
제품 설명
| Attribute | Value |
|---|---|
| Name | Nitrogen Air Separation Unit |
| Purity | 90%~99.9999% |
| Dew point | -45℃ or more |
| Material | Stainless steel or carbon steel |
| Capacity | 5Nm3/hr~5500Nm3/hr |
| Pressure | Adjustable |

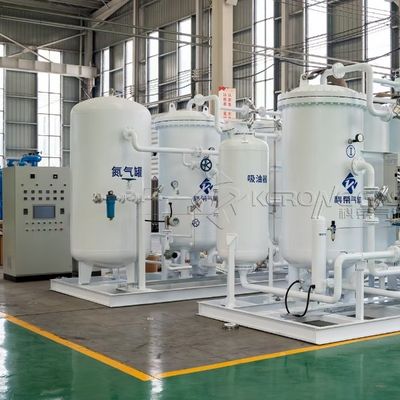

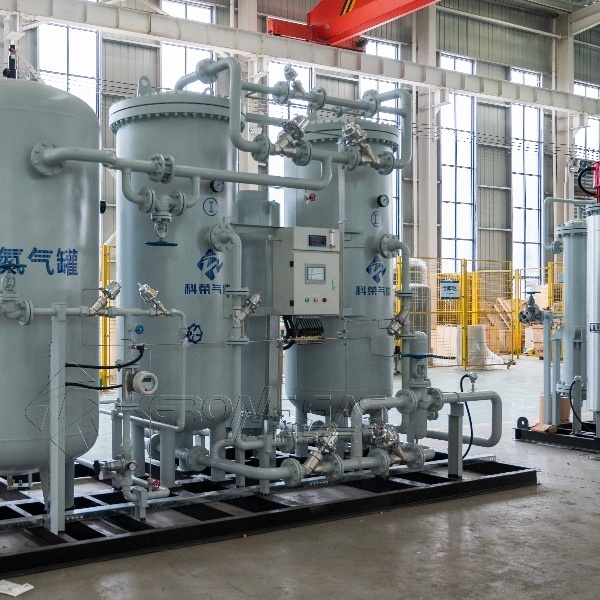

Our Automatic Safety Shutdown Explosive Proof Nitrogen Air Separation Unit is engineered for hazardous environments requiring high-purity nitrogen (up to 99.99%) with maximum safety. Utilizing advanced Pressure Swing Adsorption (PSA) or membrane technology, it separates nitrogen from compressed air, providing continuous on-site supply for chemical, petrochemical, or industrial applications. The system features explosion-proof construction and an automatic safety shutdown mechanism, protecting personnel and equipment in case of abnormal conditions. Fully automated, energy-efficient, and low-maintenance, it integrates air compression, drying, filtration, and control units in a robust design. This unit ensures reliable, safe, and compliant nitrogen generation in high-risk environments.
| Model | Nitrogen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) | Net dimensions(mm) |
|---|---|---|---|---|
| KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
| 6 | 99.5 | 0.32 | ||
| KRN219 | 15 | 99 | 0.7 | 1200*600*1900 |
- Online monitoring of oxygen purity, pressure, flow rate and dew point.
- Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
- Air dryer and air filters automatic drainer discharge.
- Automatic warning of spare parts replacement.
- Remote control / fully automatic
- Molecular sieve automatic compaction
- Pneumatic valve switching by programmable controller automatic control
- The IPC, DCS, the specific configuration of other specific programs
